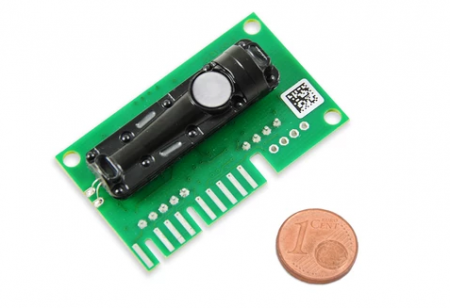

EE 892 Цифровой датчик CO2 модуль OEM

The E+E CO2 module EE892 is designed for OEM applications and for demanding environment. A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications.The E+E dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. EE892 is highly insensitive to pollution and offers outstanding long term stability. With its small dimensions and electrical connection via contact pins and pads, EE892 is the optimal choice for OEM devices such as wireless transmitters, hand-helds or data loggers. The measured data, with a range of up to 10000 ppm, is available on the E2 digital interface. An optional kit facilitates easy configuration and adjustment of the module. The measurement interval can be set according to the application requirements; by this the average current consumption can be reduced to less than 60 μA for battery-operated devices.

Выходной интерфейс: E2 interface
